商品の詳細

家へ製品

DJ85 High Capacity Cold Room Evaporator

Name: DJ85 High Capacity Cold Room Evaporator
Brand: Shenzhen Ruifujie Technology Co., Ltd.
SKU: DJ-14.3/85
Price: 5,000.00 USD
Availability: InStock

ブランド名:	Ruifujie
モデル番号:	DJ-14.3/85
Moq:	1
価格:	Discussed
配達時間:	1ヶ月
支払条件:	T/T、ウェスタンユニオン

詳細情報

製品説明

詳細情報

起源の場所:

中国

モデル:

DJ-14.3/85

公称冷凍能力:

14.3KW

一致したエリア:

85㎡

定格電圧:

380V

応用:

冷蔵室、冷凍室

MOQ:

1セット

保証:

1年

パッキング:

木箱の梱包

パッケージの詳細:

木製ケース

供給の能力:

100個

製品説明

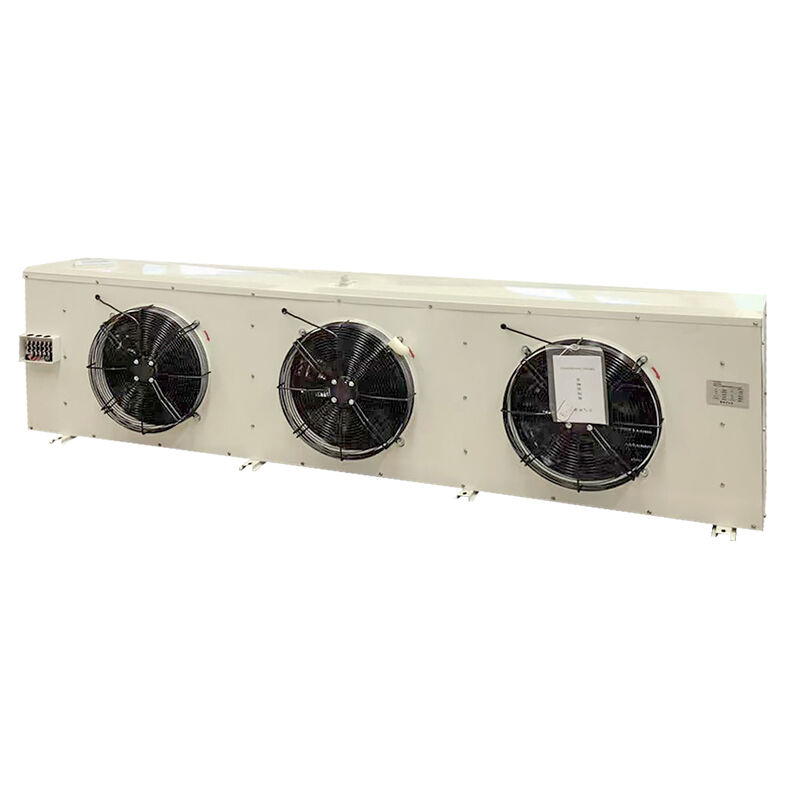

DJ85 High Capacity Cold Room Evaporator

Product Overview

DJ-14.3/85 High Capacity Cold Room Evaporator

Product Advantages

The DJ-14.3/85 high capacity cold room evaporator is a ceiling-mounted air cooler tailored for medium-to-large low-temperature cold storage with high humidity and frequent door openings, such as frozen food processing workshops, large cold chain transit warehouses, and seafood freezing facilities.

Delivering a nominal cooling capacity of 14300W with 3 units of 500mm fans providing 18000m³/h airflow and 15m air range, it maintains stable temperatures even during frequent loading/unloading operations, reducing temperature fluctuations that degrade product quality.

High-humidity low-temperature cold storage facilities face a key challenge: rapid frost buildup on evaporator coils due to high moisture levels, which reduces airflow efficiency, increases energy consumption, and requires frequent defrost cycles that disrupt continuous production. The DJ-14.3/85 evaporator addresses this issue with a high-power electric defrost system, minimizing downtime and ensuring uninterrupted cold storage operations.

Constructed with high-purity copper heat exchange tubes and 9mm anti-corrosion aluminum fins, this DJ-series evaporator features excellent heat transfer efficiency and rust resistance, optimized for continuous operation in high-humidity low-temperature environments. The 9mm fin spacing balances airflow and anti-frost performance, reducing the risk of ice blockage. It supports mainstream refrigerants including R22, R404A, and R507A, compatible with most standard condensing units. The ceiling-mounted structure saves floor space and adapts to various cold room layouts, while the integrated drain pan design simplifies condensate management.

Technical Specifications

Model	DJ-14.3/85
Nominal Cooling Capacity	14300 W
Applicable Cold Room Area	85 ㎡
Tube Volume	19.6 L
Inlet & Outlet Pipe Diameter	φ25 mm / φ40 mm
Fin Defrosting Power	8000 W
Drain Pan Defrosting Power	4000 W

Company Profile

Ruifujie is a professional modern refrigeration manufacturer with over 20 years of deep-rooted experience in the industry. Our comprehensive product lineup covers a full range of refrigeration compressors including scroll, piston, rotor, semi-hermetic and screw types, as well as supporting cold room units, quick-freezing equipment and ice making machines.

We provide full-range OEM and ODM customization services to meet the diverse and personalized needs of global clients. Our products are widely exported to Russia, the United States, the United Kingdom, the United Arab Emirates, Saudi Arabia and many other international markets. Backed by robust technical strength, strict quality control and outstanding cost performance, we have maintained long-term stable partnerships with buyers worldwide and earned consistent positive feedback from overseas customers.

Packaging and Shipping

Frequently Asked Questions

Q: What high-humidity low-temperature cold storage scenarios is the DJ-14.3/85 evaporator suitable for?

A: This high-capacity evaporator is ideal for medium-to-large low-temperature cold rooms with high humidity and frequent door openings, such as frozen food processing workshops, large cold chain transit warehouses, and seafood freezing facilities.

Q: How does the high-power electric defrost system benefit operation in high-humidity cold storage?

A: Equipped with an 8000W fin defrost heater and 4000W drain pan heater, it delivers thorough and efficient defrosting even in high-humidity environments, reducing the frequency of manual maintenance and minimizing downtime caused by frost buildup.

Q: What role does the 19.6L tube volume play in the performance of this evaporator?

A: The 19.6L nominal tube volume supports stable refrigerant flow and consistent heat exchange, ensuring reliable cooling performance even under fluctuating load conditions in busy cold storage operations.

Q: What is your MOQ for refrigeration equipment orders?

A: There is no MOQ for in-stock items, and MOQ for mass production orders can be negotiated based on specific requirements.

Q: What after-sales warranty do you provide for refrigeration products?

A: All our refrigeration products come with a 1-year warranty.
