| ブランド名: | Ruifujie |
| モデル番号: | DJ-8.9/55 |
| Moq: | 1 |
| 価格: | Discussed |
| 配達時間: | 1ヶ月 |
| 支払条件: | T/T、ウェスタンユニオン |

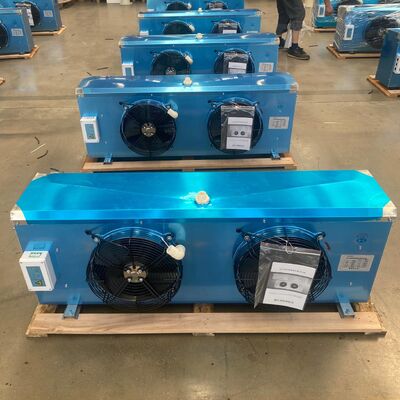

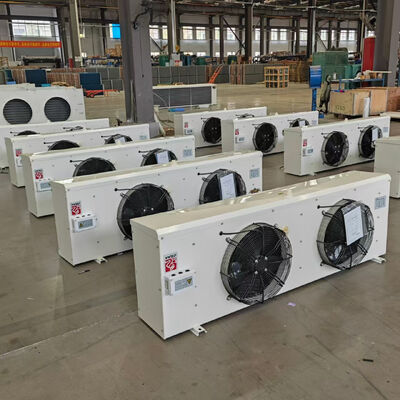

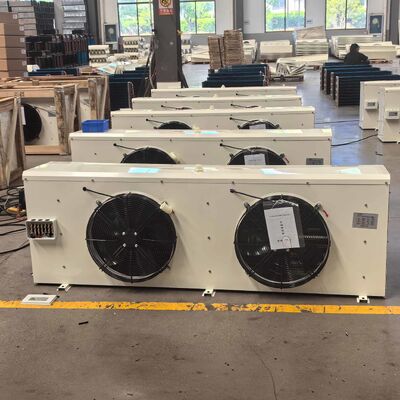

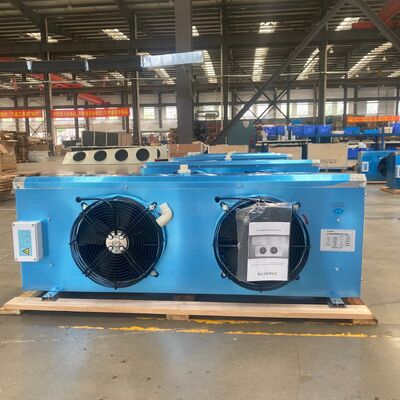

DJ-6.8/40 Ceiling Mounted Cold Storage Evaporator
The DJ-8.9/55 low-temperature ceiling type evaporator is a high-capacity air cooler tailored for ultra-low-temperature quick-freezing warehouses below -25℃, such as frozen meat processing plants, seafood quick-freezing facilities, and large-scale frozen food distribution centers. Delivering a nominal cooling capacity of 8900W, paired with 2 units of 500mm fans providing 11000m³/h airflow and 15m air range, it ensures rapid and uniform cooling across large-volume spaces, stabilizing temperatures even during frequent door openings in high-throughput freezing operations.
Ultra-low-temperature quick-freezing warehouses face unique challenges: rapid frost buildup on evaporator coils increases airflow resistance, while frequent door openings cause temperature fluctuations that degrade the quality and shelf life of frozen goods. The DJ-8.9/55 evaporator addresses these issues with a robust electric defrost system and optimized airflow design, minimizing defrost frequency and maintaining consistent storage conditions to preserve product quality.
Constructed with high-purity copper heat exchange tubes and 9mm aluminum fins, this DJ-series evaporator features excellent corrosion resistance and efficient heat transfer, optimized for continuous operation in temperatures as low as -30℃. The 9mm fin spacing, specifically designed for low-temperature environments, balances frost tolerance and airflow efficiency, reducing the risk of ice blockage. It supports mainstream refrigerants including R22, R404A, and R507A, matching various condensing units. The ceiling-mounted structure saves floor space, while the integrated defrost heater and drain pan simplify routine maintenance and reduce operational downtime.
| Model | DJ-8.9/55 |
|---|---|
| Nominal Cooling Capacity | 8900 W |
| Applicable Cold Room Area | 55 ㎡ |
| Tube Volume | 13.5 L |
| Inlet & Outlet Pipe Diameter | φ19 mm / φ32 mm |
| Fin Defrosting Power | 6000 W |
| Drain Pan Defrosting Power | 1500 W |
Ruifujie has been a leading modern refrigeration manufacturer with over 20 years of specialized experience in the industry. Our extensive product portfolio includes scroll, piston, rotor, semi-hermetic and screw refrigeration compressors, along with supporting cold room equipment, quick-freezing machines, and ice makers. We offer comprehensive OEM and ODM customization services to meet the unique needs of global clients. Our products are widely exported to Russia, the United States, the United Kingdom, the United Arab Emirates, Saudi Arabia, and other international markets. With strong technical capabilities, strict quality control, and competitive pricing, we have built long-term stable partnerships with buyers worldwide and earned high recognition in the global refrigeration market.
|
|
