RFJ Corrosion-resistant Pressure-stable 22.3kW DD120 Air Cooler

Name: RFJ Corrosion-resistant Pressure-stable 22.3kW DD120 Air Cooler
Brand: Shenzhen Ruifujie Technology Co., Ltd.
SKU: DD-22.3/120
Price: 5,000.00 USD
Availability: InStock

ブランド名:	Ruifujie
モデル番号:	DD-22.3/120
Moq:	1
価格:	Discussed
配達時間:	1ヶ月
支払条件:	T/T、ウェスタンユニオン

詳細情報

製品説明

詳細情報

起源の場所:

中国

モデル:

DD-22.3/120

公称冷凍能力:

22.3KW

一致したエリア:

120㎡

定格電圧:

380V

応用:

冷蔵室、冷凍室

MOQ:

1セット

保証:

1年

パッキング:

木箱の梱包

パッケージの詳細:

木製ケース

供給の能力:

100個

製品説明

RFJ Corrosion-resistant Pressure-stable 22.3kW DD120 Air Cooler

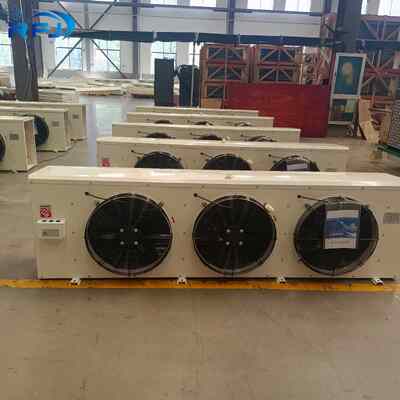

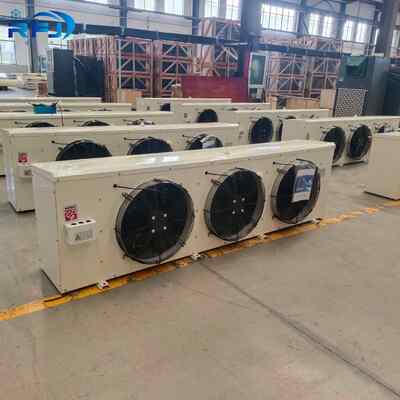

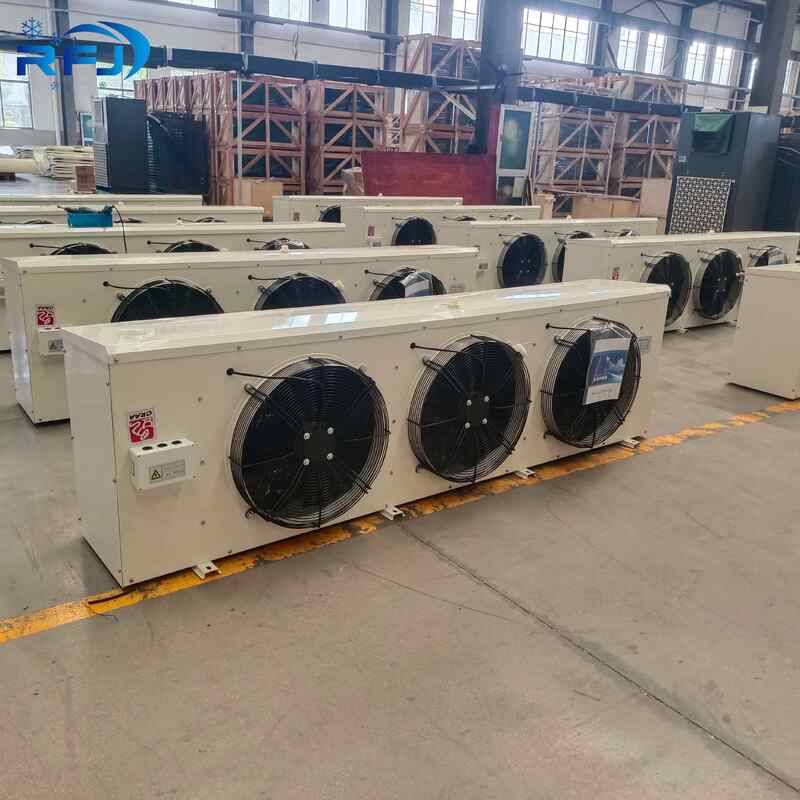

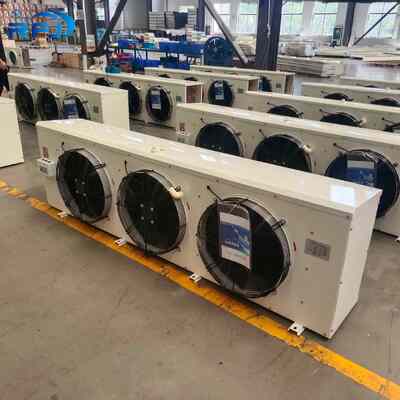

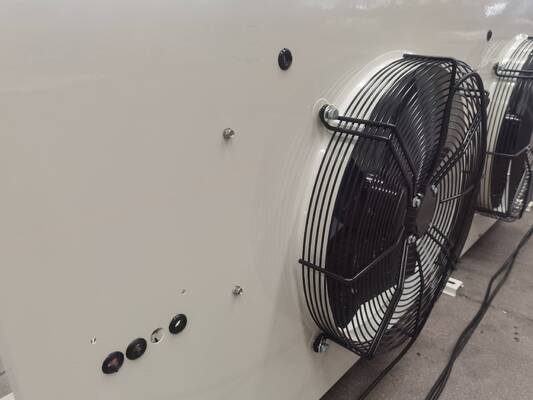

Product Images

Product Advantages

High-load Constant Cooling Performance: 22.3kW rated cooling capacity matches 120㎡ large cold storage space, continuously maintain low-temperature environment for bulk seafood and frozen meat long-term inventory storage.
Uniform Three-dimensional Air Diffusion: 18000m³/H large air volume with 15m effective air throw range, effectively reduce vertical and horizontal temperature difference inside large cold warehouse.
Triple-fan Industrial Stable Power Layout: Three pieces of 500mm-diameter fans with 3×414W rated power, working under 380V industrial voltage to adapt all-day continuous heavy-load operation.
Dual Independent High-power Defrost System: 8000W fin defrost heating power plus 4000W drain pan heating power, efficiently remove accumulated thick frost under high-humidity continuous running conditions.
Optimized Large-bore Refrigerant Pipeline: 19.6L tube volume with φ25 inlet / φ40 outlet tubing, accelerate refrigerant circulation speed and improve overall unit heat exchange efficiency.

Technical Specifications

Parameter	Specification
Model	DD-22.3/120(DD120)
Nominal Refrigeration Capacity	22.3kW(22300W)
Applicable Cold Room Area	120㎡
Tube Volume	19.6L
Refrigerant Inlet/Outlet Diameter	φ25/φ40 mm
Fan Quantity	3 units
Fan Diameter	500mm
Working Voltage	380V
Total Fan Power	1242W(3×414W)
Air Volume	18000m³/H
Air Throw Range	15m
Fin Defrost Power	8000W
Drain Pan Defrost Power	4000W

Company Profile

With over 20 years of experience, Shenzhen Ruifujie Technology Co., Ltd. is a large modern enterprise focusing on R&D, production and sales of refrigeration products. We specialize in developing and manufacturing scroll, piston, rotor, semi-hermetic and screw refrigeration compressors, which are exported worldwide. Endowed with strong technical strength and rich experience in cold storage, freezing, quick-freezing equipment and ice machines, we provide professional OEM/ODM refrigeration services and have stable global cooperative partnerships, winning high praise for high-quality refrigeration compressors and competitive prices.

Packaging and Shipping

Supply Ability	1000000 pieces/year, MOQ is usually one piece
Shipping Time	Sample order in stock within 3 days, Bulk order generally 10-15 working days after receiving deposit
Shipping Method	Support by sea, by air, by express (DHL, FedEx, UPS...)
Payment Terms	TT/Western Union 30% Advance Payment, 70% Final Payment
Shipping Port	Ningbo Port, Shanghai Port, Shenzhen Port

Frequently Asked Questions

Q: What is your MOQ?

A: Our minimum order quantity is usually 1 set.

Q: What are the main products?

A: 1. Scroll compressor, Piston compressor, Rotary compressor, Semi-hermetic compressor, Screw compressor

Q: What is your delivery time?

A: The time of delivery is 3-10 working days after payment.

Q: Can we use our own logo?

A: Yes, we can print your private logo according to your request.

Q: How about the packaging?

A: Ship by sea with refrigerat oil in wooden case. Ship by air without refrigerat oil in wooden case.
