Durable DL410 Evaporator for Ultra Large Industrial Cold Storage

Name: Durable DL410 Evaporator for Ultra Large Industrial Cold Storage
Brand: Shenzhen Ruifujie Technology Co., Ltd.
SKU: DL-83.6/410
Price: 5,000.00 USD
Availability: InStock

ブランド名:	Ruifujie
モデル番号:	DL-83.6/410
Moq:	1
価格:	Discussed
配達時間:	1ヶ月
支払条件:	T/T、ウェスタンユニオン

詳細情報

製品説明

詳細情報

起源の場所:

中国

モデル:

DL-83.6/410

公称冷凍能力:

83.6KW (83600W)

一致したエリア:

410㎡

定格電圧:

380V

応用:

冷蔵室、冷凍室

MOQ:

1セット

保証:

1年

パッキング:

木箱の梱包

パッケージの詳細:

木製ケース

供給の能力:

100個

ハイライト:

DL410 industrial evaporator

ultra large cold storage evaporator

durable refrigeration evaporator

製品説明

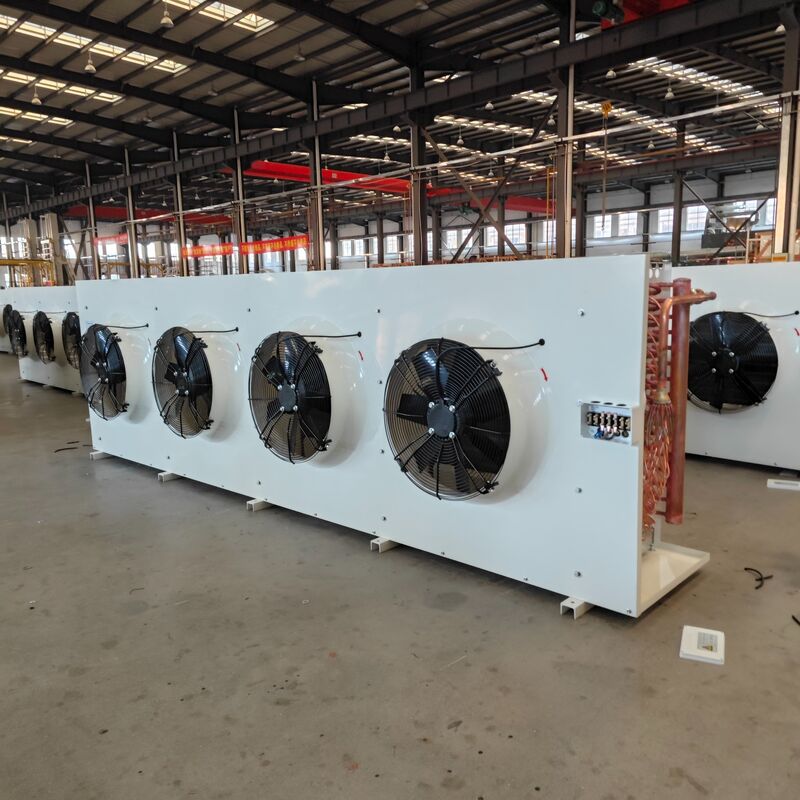

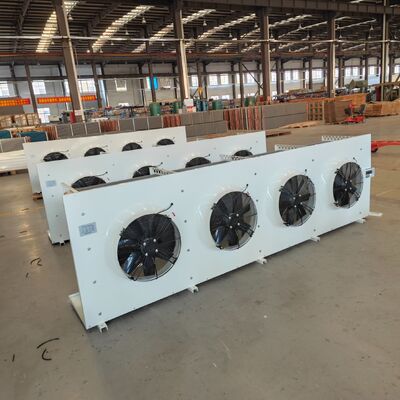

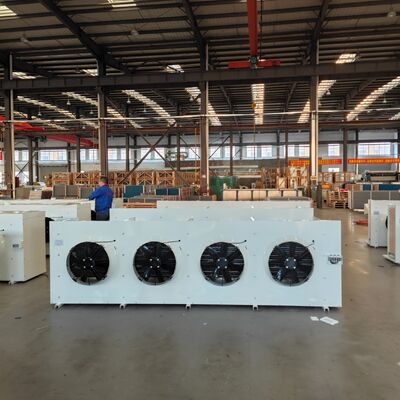

DL410 Evaporator for Ultra Large Industrial Cold Storage

High-performance evaporator designed for ultra large industrial cold storage facilities with powerful cooling capacity and reliable operation.

Product Advantages

Powerful Refrigeration Capacity: 83.7kW nominal cooling capacity, perfectly matched for 410㎡ super large cold rooms
Omnidirectional Air Delivery: 24000m³/H air volume with 15m delivery distance for uniform cooling
Stable Fan Operation System: Four 500mm diameter fans with 380V power supply for continuous industrial operation
Super Fast Defrosting Effect: 12000W high-power fin defrost with drain pan defrost function
Expanded Flow Pipeline: 45.3L large internal tube volume and widened pipeline caliber for enhanced heat exchange

Technical Specifications

Model	DL-83.7/410 (DL410)
Nominal Refrigeration Capacity	83.7 kW
Applicable Cold Room Area	410 ㎡
Tube Volume	45.3 L
Refrigerant Inlet/Outlet Diameter	φ32 / φ54 mm
Fan Quantity	4 units
Fan Diameter	500 mm
Working Voltage	380 V
Total Fan Power	1656 W (4 × 414 W)
Air Volume	24000 m³/H
Air Throw Range	15 m
Fin Defrost Power	12000 W
Drain Pan Defrost Power	2400 W

Company Profile

With over 20 years of experience, Shenzhen Ruifujie is a leading modern refrigeration enterprise specializing in refrigeration compressors. We produce scroll, piston, rotor, semi-hermetic and screw compressors, exported to countries including Pakistan, Turkey, Canada and Russia. We provide professional OEM/ODM services and have strong technical expertise in refrigeration, earning global customer praise for high-quality compressors and excellent service.

Packaging and Shipping

Supply Ability	1000000 pieces/year, MOQ is usually one piece
Shipping Time	Sample order in stock within 3 days, Bulk order generally 10-15 working days after receiving deposit
Shipping Method	Support by sea, by air, by express (DHL, FedEx, UPS...)
Payment Terms	TT/Western Union - 30% Advance Payment, 70% Final Payment
Shipping Port	Ningbo Port, Shanghai Port, Shenzhen Port

Frequently Asked Questions

What is your minimum order quantity?

Our minimum order quantity is usually one piece.

What are the main products?

Semi-hermetic compressor, Hermetic Compressor, Condenser Unit, Air Cooler, Spare Parts, Chillers and Evaporators

What is your delivery time?

For sample orders in stock, we aim to ship within 3 days. For bulk orders, generally we ship in 10-15 working days after receiving deposit.

What about the services and aftersale?

We guarantee product quality with a 1-year warranty. Our team ensures reliable support throughout and after your purchase.

What are your price terms?

TT/WESTERN UNION
