| ブランド名: | Copeland |
| モデル番号: | ZR28K3E-PFJ-522 |
| Moq: | 1 |
| 価格: | usd500/pc |
| 配達時間: | 5-7days |
| 支払条件: | T/T、ウェスタン・ユニオン |

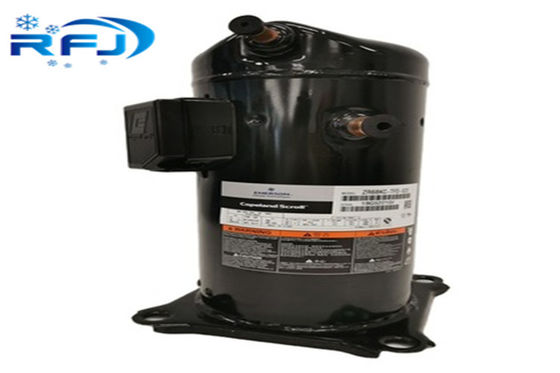

High quality emerson compressor ZR28K3E-PFJ-522 for scroll type
1.Products introdutions:
1. Wide scroll line-up
2. Low oil circulation rate
3. Low sound and vibration level
4. High efficiency for saving energy consumption
5. Refrigerant: R22/R410A/R407C/R134a/R404A/R507
6. Certification: CE
| brand | copeland |
| model | ZR28K3E-PFJ-522 |
| horse power | 2.5 |
| refrigerant | R410a |
| power source | 220v/240V |
| Phase | 1 |
| Color | Black |
| Connection | Rotolock |
| TYPE | COPELAND SCROLL COMPRESSOR |
| MOQ | 1 |
2.Detail introduction:
| MODEL | HP | CAPACITY(W) | INPUT POWER(KW) | INPUT CURRENT(A) | NET WEIGHT(KG) | HEIGHT(MM) | SUCTION |
| ZR24K3-TFD-522 | 2 | 5920 | 1.87 | 4.3 | 25.9 | 383 | 19/12 |
| ZR28K3-TFD-522 | 2.5 | 6910 | 2.15 | 5 | 26.3 | 383 | 19/12 |
| ZR34K3-TFD-522 | 2.8 | 8200 | 2.52 | 5.7 | 28 | 406 | 19/12 |
| ZR38K3-TFD-522 | 3 | 8900 | 2.7 | 5.7 | 28 | 406 | 19/12 |
| ZR42K3-TFD-522 | 3.5 | 10100 | 3.12 | 7.1 | 28.6 | 419 | 19/12 |
| ZR48K3-TFD-522 | 4 | 11500 | 3.53 | 7.2 | 28.6 | 436 | 22/12 |
| ZR54KC-TFD-522 | 4.5 | 12900 | 4.03 | 8.7 | 35.4 | 457 | 22/12 |
| ZR57KC-TFD-522 | 4.8 | 13700 | 4.16 | 8.7 | 35.4 | 457 | 22/12 |
3.Electrical data:
Power supply [V/~/Hz]: 208-230V/3/50Hz
Locked rotor current [A]: 112,0
Max. operating current [A]: 25,0
4.Electrical data:
Power supply [V/~/Hz]: 208-230V/3/50Hz
Locked rotor current [A]: 112,0
Max. operating current [A]: 25,0
5.Scroll Compressors:
When Emerson first pioneered the use of scroll technology in compressors, it changed the industry forever. Since then, Copeland Scroll technology remains at the forefront
for HVACR applications, impressing contractors and original equipment manufacturers (OEMs)
with its superior efficiency, proven reliability and ease of installation.
6.Efficiency:
Approximately 35 percent of the electrical energy consumed each year in the United States is used by HVACR systems. Compressors
make up a vast majority of the energy used in air conditioning and refrigeration systems. That means compressor selection is key to
improving the overall efficiency of HVACR systems. The inherent design of Copeland Scroll compressors makes them a preferred choice
for more energy-efficient systems. In fact, Copeland Scroll compressors play a key role in helping the industry throught major transitions
like the 1992 move to a 10 SEER standard and the industry's shift in 2006 to a 13 SEER minimum. As the industry prepares for another regulatory
change - this time the phaseout of R-22 refrigerants in favor of the more environmentally friendly R-410A - it will benefit from the versatility and efficiency of scroll compressor technology.
7. Product qualification
Certificate, certification, patent certificate:
1)."Quality Management System Certification"
2)."Shenzhen Science and Technology Enterprise Certification"
3)."Refrigeration Equipment Air Conditioning Maintenance and Installation Enterprise Qualification Certificate"
FAQ:
1). What is your MOQ?
---Our MOQ is usually 1 set.
2). What is your delievery time?
---The time of delievery is usually 5 working days after payment.
