| ブランド名: | Copeland |
| モデル番号: | ZR72KC-TFD-522 |
| Moq: | 1 |
| 価格: | 1USD |
| 配達時間: | 1-7days |
| 支払条件: | T/T |

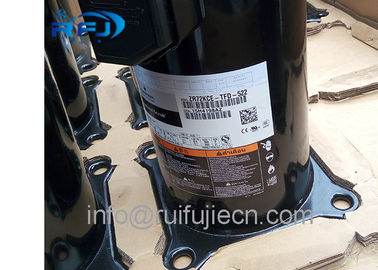

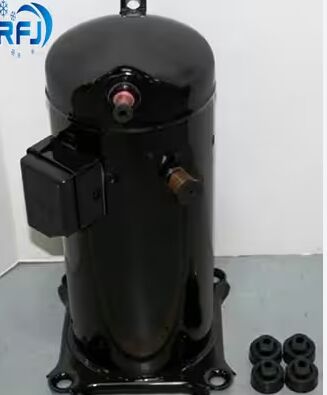

6HPの元および真新しいエマーソンCopelandスクロール圧縮機の冷凍の圧縮機Zr72kc-Tfd-522
製品の説明
1.Forエアコン
2.Horsepower:6HP
3.Model:ZR72KC-TFD-522
4.Power:5.2kw
5.Capacity:17.7KW
6.Usingガス:R22
7.Voltage:380V/50HZ/3PH、460V/3PH/60HZ
CopelandスクロールZRの圧縮機のための利用できるモデル:
段階 |
モデル | 馬Power/HP | 変位m3/h | ARI 7.2/54.4ºC | 重量Kg | 高さmm | |
| 冷却の/W | 入力パワーW | ||||||
| 1段階 | ZR28K3-PFJ | 2.33 | 6.83 | 6910 | 2150 | 27.2 | 382.8 |
| 1段階 | ZR30K3-PFJ | 2.5 | 7.3 | 7380 | 2290 | 28.6 | 405.5 |
| 1段階 | ZR32K3-PFJ | 2.67 | 7.55 | 7760 | 2410 | 28.1 | 405.5 |
| 1段階 | ZR34K3-PFJ | 2.83 | 8.02 | 8200 | 2520 | 29.5 | 405.5 |
| 1段階 | ZR36K3-PFJ | 3 | 8.61 | 8790 | 2700 | 29.5 | 405.5 |
| 1段階 | ZR40K3-PFJ | 3.33 | 9.43 | 9670 | 2970 | 29.9 | 419.3 |
| 1段階 | ZR42K3-PFJ | 3.5 | 9.94 | 10100 | 3120 | 29.9 | 419.3 |
| 1段階 | ZR47K3-PFJ | 3.92 | 11.16 | 11500 | 3530 | 30.4 | 436.6 |
| 3段階 | ZR22K3-TFD | 1.83 | 5.34 | 5330 | 1650 | 25.9 | 382.8 |
| 3段階 | ZR24K3-TFD | 2 | 5.92 | 5920 | 1840 | 25.9 | 382.8 |
| 3段階 | ZR26K3-TFD | 2.17 | 6.27 | 6330 | 1960年 | 25.9 | 382.8 |
| 3段階 | ZR28K3-TFD | 2.33 | 6.83 | 6910 | 2150 | 26.3 | 405.5 |
| 3段階 | ZR30K3-TFD | 2.5 | 7.3 | 7380 | 2290 | 26.3 | 405.5 |
| 3段階 | ZR32K3-TFD | 2.67 | 7.55 | 7760 | 2410 | 26.3 | 405.5 |
| 3段階 | ZR34K3-TFD | 2.83 | 8.02 | 8200 | 2500 | 28.6 | 405.5 |
| 3段階 | ZR36K3-TFD | 3 | 8.61 | 8790 | 2680 | 27.2 | 405.5 |
| 3段階 | ZR40K3-TFD | 3.33 | 9.43 | 9670 | 2950 | 28.6 | 419.3 |
| 3段階 | ZR42K3-TFD | 3.5 | 9.94 | 10100 | 3090 | 28.6 | 419.3 |
| 3段階 | ZR45KC-TFD | 3.75 | 10.73 | 11000 | 3380 | 28.6 | 436.3 |
| 3段階 | ZR46KC-TFD | 3.83 | 10.95 | 11100 | 3390 | 34.9 | 456.9 |
| 3段階 | ZR47KC-TFD | 3.92 | 11.16 | 11500 | 3500 | 28.6 | 436.3 |
| 3段階 | ZR49KC-TFD | 4.08 | 11.45 | 11700 | 3600 | 35.4 | 456.9 |
| 3段階 | ZR54KC-TFD | 4.5 | 12.73 | 12900 | 4030 | 35.4 | 456.9 |
| 3段階 | ZR57KC-TFD | 4.75 | 13.42 | 13700 | 4160 | 35.4 | 456.9 |
| 3段階 | ZR61KC-TFD | 5.08 | 14.34 | 14600 | 4430 | 35.8 | 456.9 |
| 3段階 | ZR68KC-TFD | 5.75 | 16.18 | 16400 | 4970 | 38.1 | 456.9 |
| 3段階 | ZR72KC-TFD | 6 | 17.05 | 17400 | 5250 | 38.1 | 456.9 |
| 3段階 | ZR81KC-TFD | 6.75 | 19.2 | 19690 | 5830 | 40.9 | 462.4 |
| 3段階 | ZR84KC-TFD | 7 | 19.75 | 20330 | 6140 | 56.7 | 495.3 |
| 3段階 | ZR94KC-TFD | 8 | 22.14 | 22940 | 7000 | 58 | 495.3 |
| 3段階 | ZR108KC-TFD | 9 | 25.15 | 26250 | 7830 | 72.6 | 533.4 |
| 3段階 | ZR125KC-TFD | 10 | 28.77 | 30470 | 9060 | 78 | 533.4 |
| 3段階 | ZR144KC-TFD | 10 | 28.8 | 29890 | 8955 | 92 | 542 |
| 3段階 | ZR160KC-TFD | 13 | 35.6 | 37330 | 11175 | 98 | 557 |
| 3段階 | ZR190KC-TFD | 15 | 42.1 | 45170 | 13400 | 112 | 596 |
